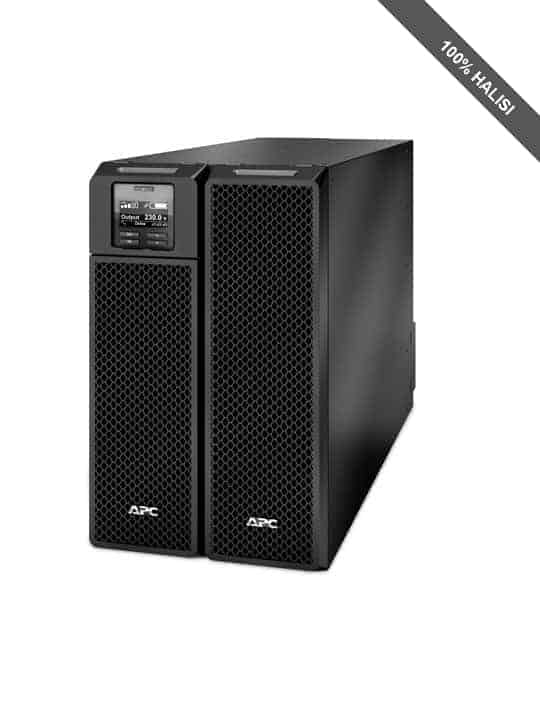

APC Smart-UPS SRT 10000VA 230V

Output power capacity: 10.0 KWatts / 10.0 kVA Max Configurable Power (Watts): 10.0 KWatts / 10.0 kVA Nominal Output Voltage: 230V Output Voltage Distortion: Less than 2% Output Frequency (sync to mains): 50/60Hz /- 3 Hz Other Output Voltages: 220, 240 Load Crest Factor: 3 : 1 Topology: Double Conversion Online: Waveform type: Sine wave Output Connections: (6) IEC 320 C13 (Battery Backup) (4) IEC 320 C19 (Battery Backup) (1) Hard Wire 3-wire (H N G) (Battery Backup) (3) IEC Jumpers (Battery Backup) Bypass: Internal Bypass (Automatic and Manual) Nominal Input Voltage: 230V , 400V 3PH Input frequency: 40 – 70 Hz (auto sensing) Input Connections: Hard Wire 3 wire (1PH N G), Hard Wire 5-wire (3PH N G) Input voltage range for main operations: 160 – 275V Input voltage adjustable range for mains operation: 100 – 275 (half load), 173 – 476 (half load)V Other Input Voltages: 220, 240, 380, 415 Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof Typical recharge time: 1.5hour(s) Replacement Battery: APCRBC140 Expected Battery Life (years): 3 – 5 RBC Quantity: 2 Extendable Run Time: 1 Battery Volt-Amp-Hour Capacity: 1805 Extended Run Options: APC-Smart-UPS-SRT-10000VA-230V Interface Port(s): RJ-45 10/100 Base-T , RJ-45 Serial , Smart-Slot , USB Control panel: Multi-function LCD status and control console Audible Alarm: Audible and visible alarms prioritized by severity Emergency Power Off (EPO): Yes Available SmartSlot™ Interface Quantity: 1 Surge energy rating: 480Joules Maximum Height: 432mm , 43.2cm Maximum Width: 263mm , 26.3cm Maximum Depth: 715mm , 71.5cm Net Weight: 111.82kg Shipping weight: 126.82kg Shipping Height: 461mm , 46.1cm Shipping Width: 600mm , 60.0cm Shipping Depth: 1000mm , 100.0cm Color: Black Operating Environment: 0 – 40 °C Operating Relative Humidity: 0 – 95 % Operating Elevation: 0-3000meters Storage Temperature: -15 – 45 °C Storage Relative Humidity: 0 – 95% non-condensing % Storage Elevation: 0-15000meters Audible noise at 1 meter from surface of unit: 55.0dBA Online thermal dissipation: 1947.0BTU/hr Protection Class: IP 20 Approvals: CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, ENERGY STAR (EU), IRAM, RCM, VDE Standard warranty: 3 years repair or replace (excluding battery) and 2 years for battery RoHS: Compliant REACH: REACH: Contains No SVHCs Battery Directive: Compliant Battery Notes: ts_Battery_Notes
