BOVONE MINI-MAXI 371 glass beveling machine

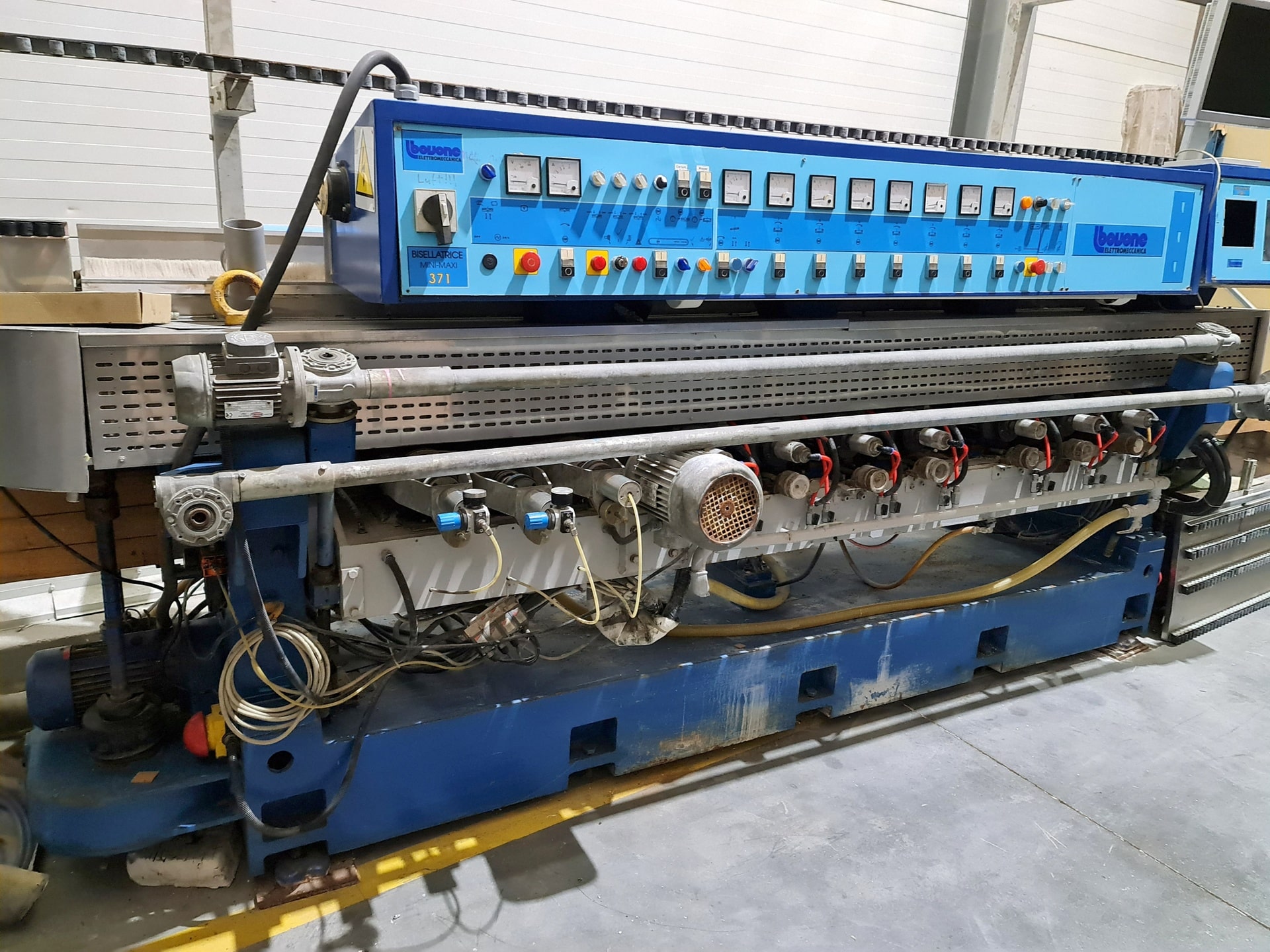

BOVONE MINI-MAXI 371 glass beveling machine was manufactured in 1999 in Italy. The machining of glass of maximum thickness 25 mm is performed by the machine by means of water-cooled grinding and polishing discs, placed on 11 reliable spindles. The quality cast iron construction additionally ensures exceptional stability during the process. The MINI MAXI 371 glass straight-line edging machine has recently undergone a major inspection. The total weight of the machine is 4400 kg. Technical specifications of the BOVONE MINI-MAXI 371 glass beveling machine maximum glass thickness: 25 mm minimum glass thickness: 3 mm minimum glass size: 35×35 mm bevel angle: 3-45° maximum bevel width: 60 mm working speed: 0.4-5.4 m/min number of spindles: 11 diamond grinding wheels (6 pcs.) polishing discs (3 pcs.) front cup grinding wheel (1 pc.) edge disc (1 pc.) water tank with pump power: 22 kW power supply: 380 V; 50 Hz weight of machine: 4400 kg
