WALTER HELITRONIC BASIC-F CNC tool grinding machine

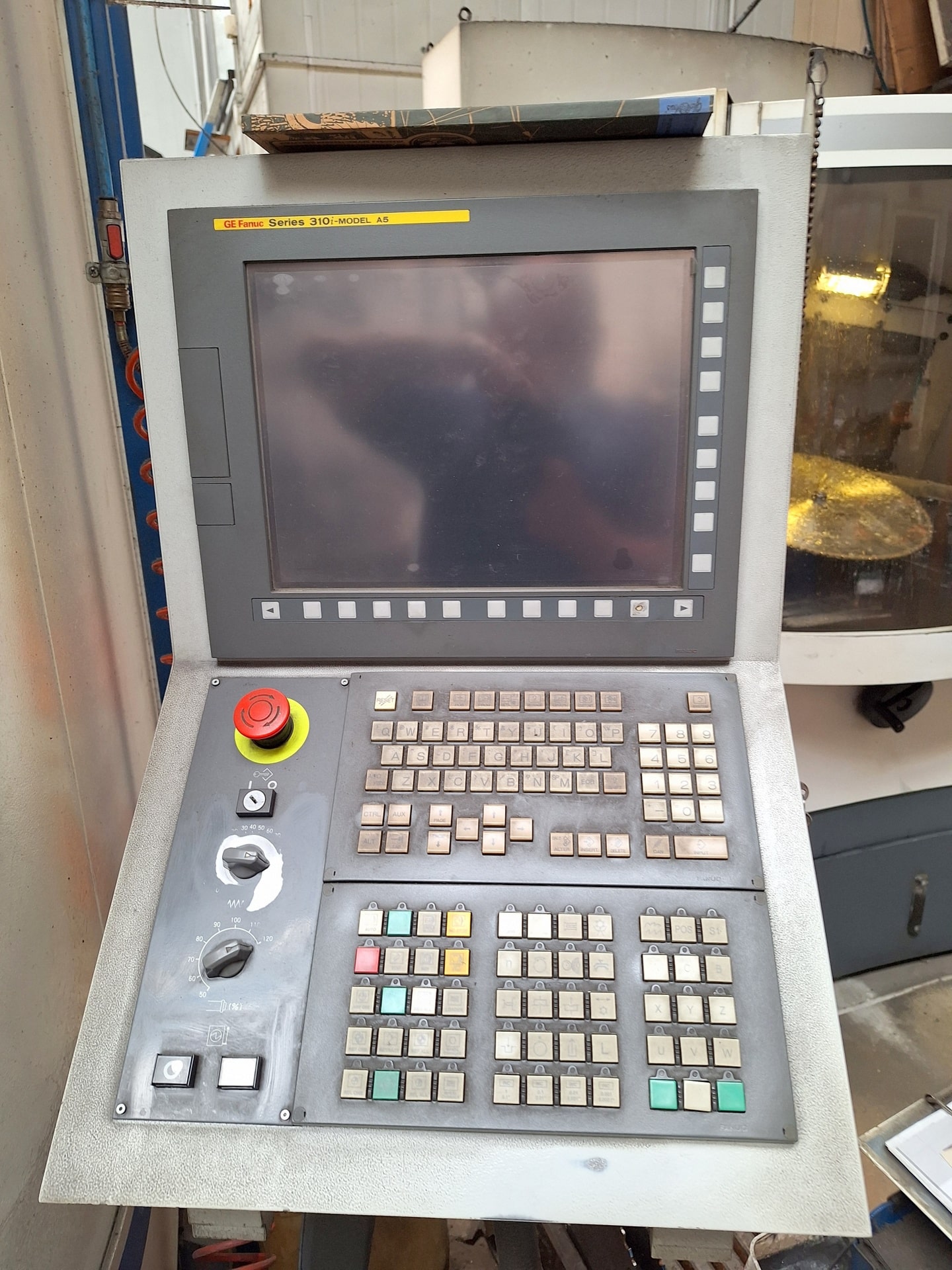

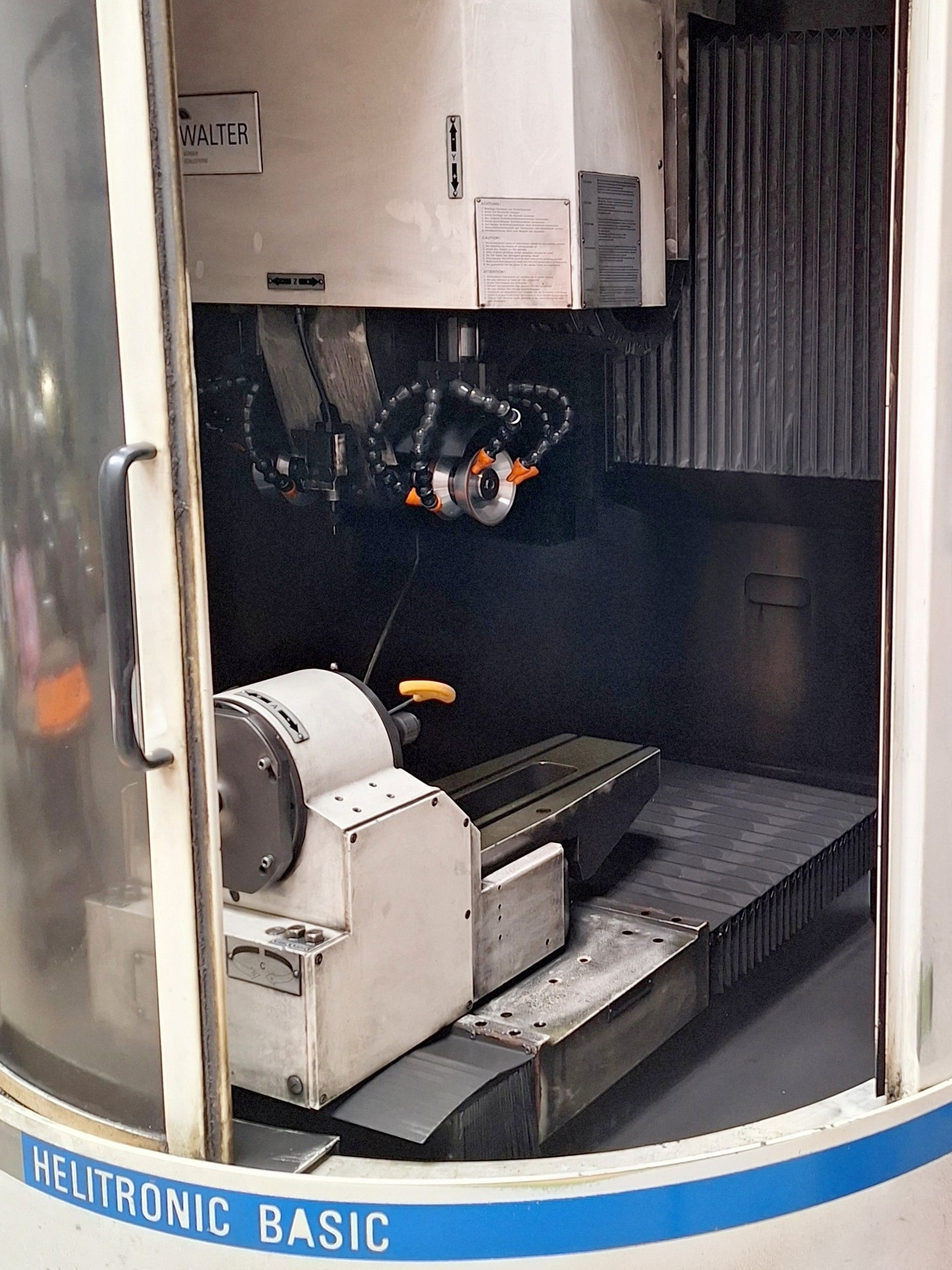

WALTER HELITRONIC BASIC-F CNC tool grinding machine built in 2007 is the perfect choice for sharpening and grinding a wide range of metal or woodworking tools, special tools, as well as parts with complex geometries. The machining process is performed in 5 axes using a spindle with a reliable belt drive and two ends. Each end of the spindle can accommodate up to three grinding wheels with a maximum diameter of 150 mm. Individual sets of grinding wheels are assigned to the corresponding spindle, together with the grinding wheel measurement data. The WALTER 5-axis CNC grinding machine is also distinguished by its stable grey cast iron gantry design, which ensures the highest precision and machining quality. In addition, short set-up and downtimes ensure cost-effective production, even in multi-shift operations with a small workforce. The WALTER HELITRONIC BASIC-F VERSION FS CNC grinding machine is numerically controlled via a perfectly optimised FANUC controller, the world standard in control equipment. The total weight of the machine is 4500 kg. Technical specifications of the WALTER HELITRONIC BASIC-F CNC tool grinding machine CNC controller: FANUC SERIES 310i-MODEL A5 number of axes: 5 (X,Y,Z,C,A) feed in X/Y/Z axis: 460/320/660 mm feed in C axis: -200°/ 200° feed in A axis: ∞ feed rate X,Y,Z axis: 15 m/min feed rate in C axis: 20 rpm feed rate in A axis: 0-60 rpm maximum tool diameter (complete machining): 240 mm maximum tool diameter (wooden profile tools): 320 mm minimum tool diameter: 3 mm tool length (complete machining): 255 mm tool length (peripheral grinding): 350 mm tool length (face grinding): 280 mm maximum spindle rotational speed: 9500 rpm spindle diameter: 70 mm maximum grinding wheel diameter: 150 mm operating hours: 15339 h linear resolution: 0.0001 mm radial resolution: 0.0001° sensor with beacon for rapid setting and positioning cooling system: belt filter with approx. 350 l capacity TRANSOR filter unit with approx. 800 l capacity USB modem minimum operating pressure: 6 bar air consumption (at 0.5 bar): 4000 l/h noise level: < 70 dB (A) connection power: approx. 20 kVA power supply: 400 V; 50 Hz space requirement (L x W x H): 2570 x 2930 x 2280 mm weight of machine: 4500 kg
