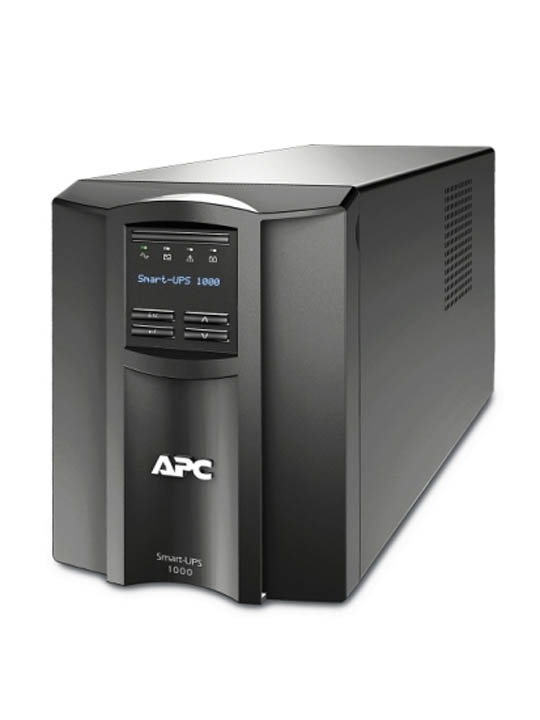

APC Smart-UPS 1000VA Tower – LCD Display, AVR, SmartConnect Port – SMT1000IC

Overview Presentation Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices. Lead time Usually Ships within 2 Weeks Main Run time for load 700W information_stroke Min-max: 70-700 W 5min 49s Max. Capacity Used information_stroke 100 % Main Input Voltage 230 V Other Input Voltage 220 V 240 V Main Output Voltage 230 V Other Output Voltage 220 V 240 V Rated power in W 700 W Rated power in VA 1000 VA Product or component type Uninterruptible power supply (UPS) Input Connection Type IEC 320 C14 output connection type 8 IEC 320 C13 2 IEC Jumpers Battery type Lead-acid battery Provided equipment Cat 5 Ethernet cable Installation guide USB cable Range of product Smart-UPS Complementary Communication port type SmartConnect Ethernet port SmartSlot Software package SmartConnect software for remote power monitoring feature availability varies by terms of use Batteries & Runtime Run Time View Runtime Graph Efficiency View Efficiency Graph Additional information Configurable for 220 : 230 or 240 nominal output voltage Extended runtime 0 Number of battery filled slots 0 Number of battery free slots 0 Battery recharge time 3 h Number of battery replacement quantity 1 Battery life 3…5 year(s) Replacement battery RBC6 Battery charger power 88 W rated General Number of power module 0 Number of power module filled slots 0 Number of power module free slots 0 product web sub-family Cloud-enabled monitoring Redundant No Physical Colour Black Height 21.9 cm Width 17.1 cm Depth 43.9 cm Net weight 19.4 kg Mounting location Front Mounting preference No preference Mounting mode Not rack-mountable Two post mountable 0 USB compatible No Input Input voltage limits 151…302 V adjustable 160…286 V Network frequency 50/60 Hz /- 3 Hz auto-sensing Output Harmonic distortion Less than 5 % Maximum configurable power in VA 1000 VA Maximum configurable power in W 700 W Transfer time 6 ms typical : 10 ms maximum UPS type Line interactive Wave type Sine wave Output frequency 50/60 Hz /- 3 Hz sync to mains Conformance Product certifications CE EAC RCM VDE UK PSTI Standards EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 Environmental Acoustic level 41 dBA Heat dissipation 100 Btu/h Operating altitude 0…10000 ft Ambient air temperature for operation 0…40 °C Ambient air temperature for storage -15…45 °C Storage altitude 0.0000000000…15240.0000000000 m Relative humidity 0…95 % Storage Relative Humidity 0…95 % Communications & Management control panel Multifunction LCD status and control console Emergency power off Optional Free slots 1 Communication port support SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use Alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm Surge Protection and Filtering Surge energy rate 459 J Noise suppression Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 Contractual warranty Warranty 3 years repair or replace (excluding battery) and 2 years for battery
